MD60

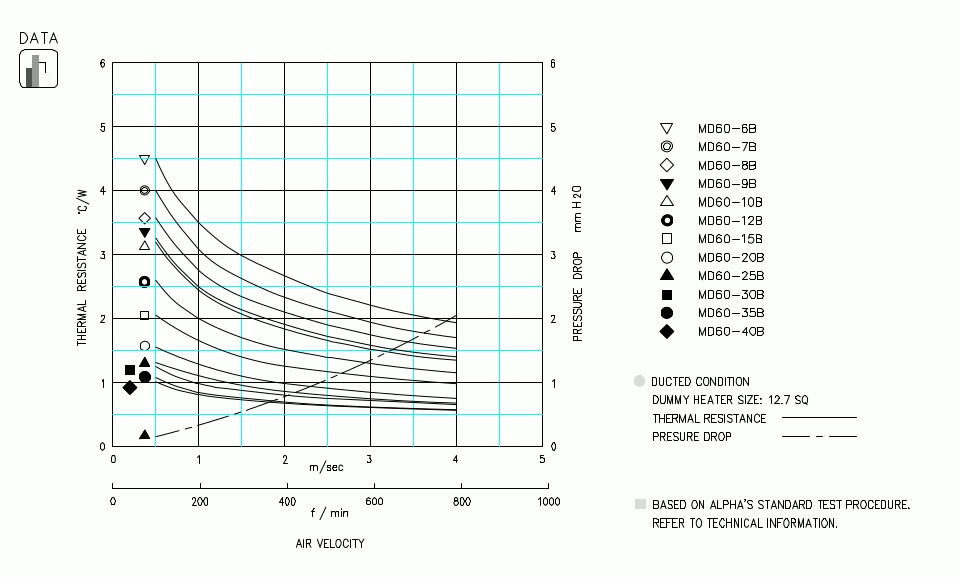

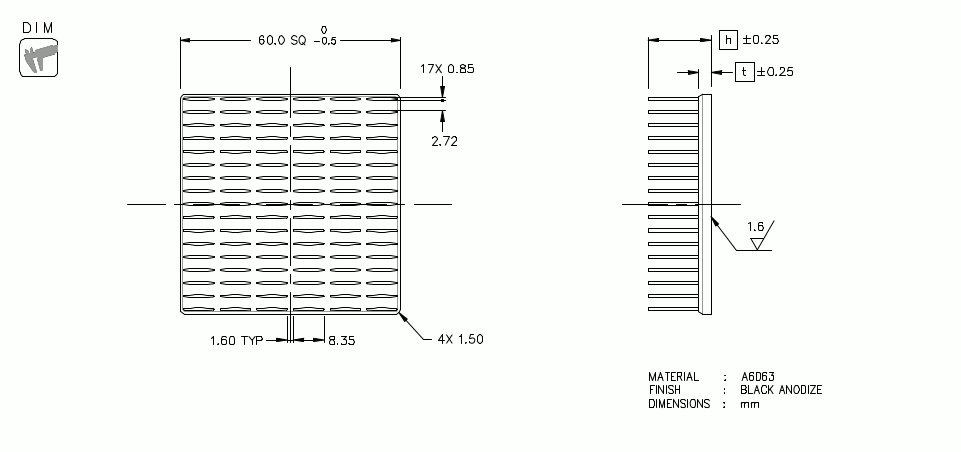

MD60 SPECIFICATION & THERMAL DATA
| Model | Height h (mm) |
Base t (mm) |
Weight (g) |
Download | Availability / Price / Order | Option | ||
|---|---|---|---|---|---|---|---|---|
| 6 | 3.0 | 33.1 |
|
STEP | IGES |
|
Additional Engineering Designation
Minimum Order: 1 pcs
Lead-time: 7-10 days ※We will respond to further express services. |
|
| 7 | 34.9 | STEP | IGES | |||||
| 8 | 36.7 | STEP | IGES | |||||
| 9 | 38.6 | STEP | IGES | |||||
| 10 | 4.0 | 47.3 | STEP | IGES | ||||
| 12 | 50.3 | STEP | IGES | |||||
| 15 | 54.7 | STEP | IGES | |||||
| 20 | 62.1 | STEP | IGES | |||||
| 25 | 69.5 | STEP | IGES | |||||
| 30 | 78.6 | STEP | IGES | |||||
| 35 | 86.3 | STEP | IGES | |||||
| 40 | 94.0 | STEP | IGES | |||||
|
