MD80

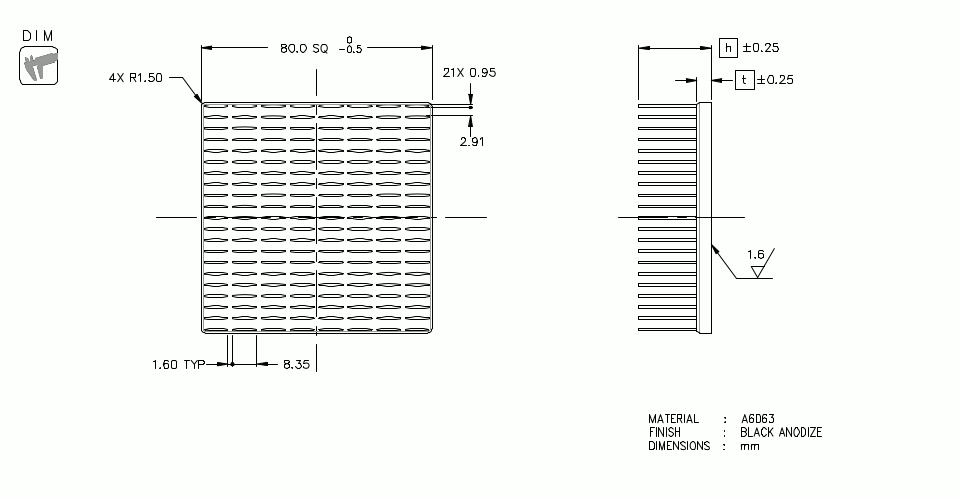

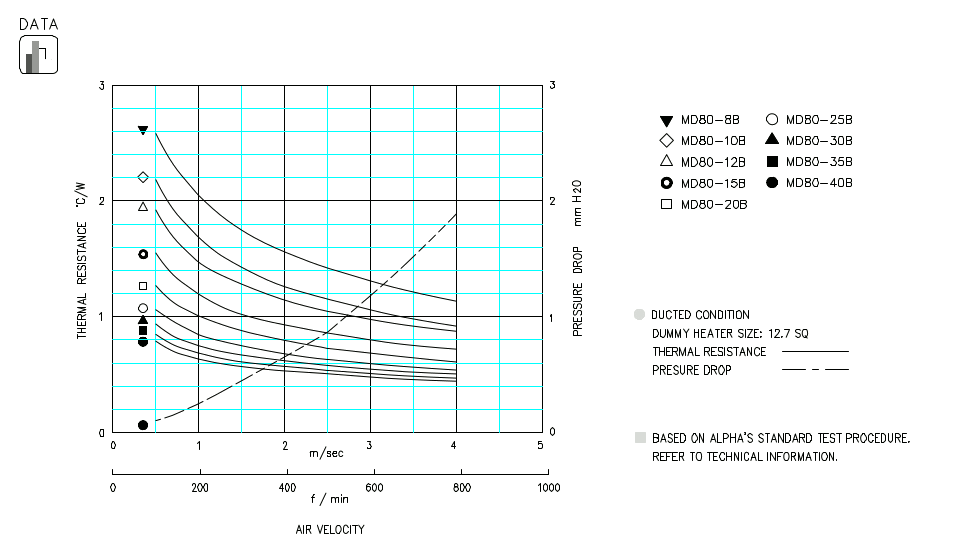

MD80 SPECIFICATION & THERMAL DATA
| Model | Height h (mm) |
Base t (mm) |
Weight (g) |
Download | Availability / Price / Order | Option | ||
|---|---|---|---|---|---|---|---|---|
| 8 | 4.0 | 79.8 |
|
STEP | IGES |
|
Additional Engineering Designation
Minimum Order: 1 pcs
Lead-time: 7-10 days ※We will respond to further express services. |
|
| 10 | 85.3 | STEP | IGES | |||||
| 12 | 90.7 | STEP | IGES | |||||
| 15 | 5.0 | 113.4 | STEP | IGES | ||||
| 20 | 127.4 | STEP | IGES | |||||
| 25 | 141.3 | STEP | IGES | |||||
| 30 | 155.2 | STEP | IGES | |||||
| 35 | 169.2 | STEP | IGES | |||||
| 40 | 183.1 | STEP | IGES | |||||
|
