N40

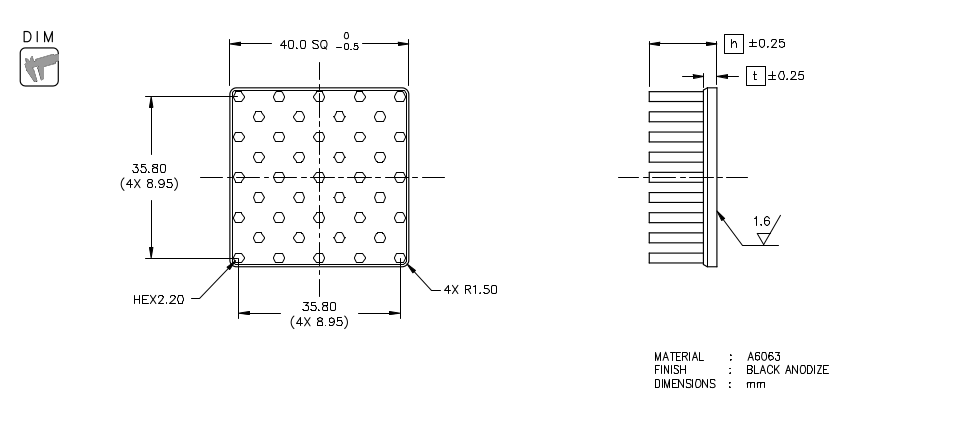

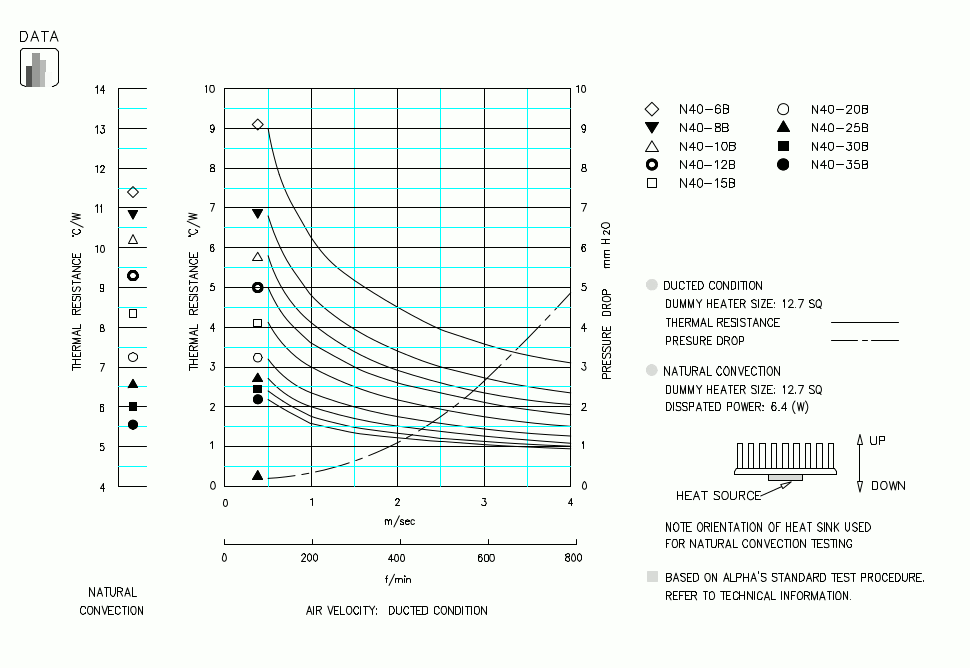

N40 SPECIFICATION & THERMAL DATA
| Model | Height h (mm) |
Base t (mm) |
Weight (g) |
Download | Availability / Price / Order | Option | ||
|---|---|---|---|---|---|---|---|---|
| 6 | 2.0 | 10.2 |
|
STEP | IGES |
|
Additional Engineering Designation
Minimum Order: 1 pcs
Lead-time: 7-10 days ※We will respond to further express services. |
|
| 8 | 11.2 | STEP | IGES | |||||
| 10 | 3.0 | 16.1 | STEP | IGES | ||||
| 12 | 16.8 | STEP | IGES | |||||
| 15 | 18.4 | STEP | IGES | |||||
| 20 | 20.7 | STEP | IGES | |||||
| 25 | 23.0 | STEP | IGES | |||||
| 30 | 25.1 | STEP | IGES | |||||
| 35 | 27.4 | STEP | IGES | |||||
|
