N70

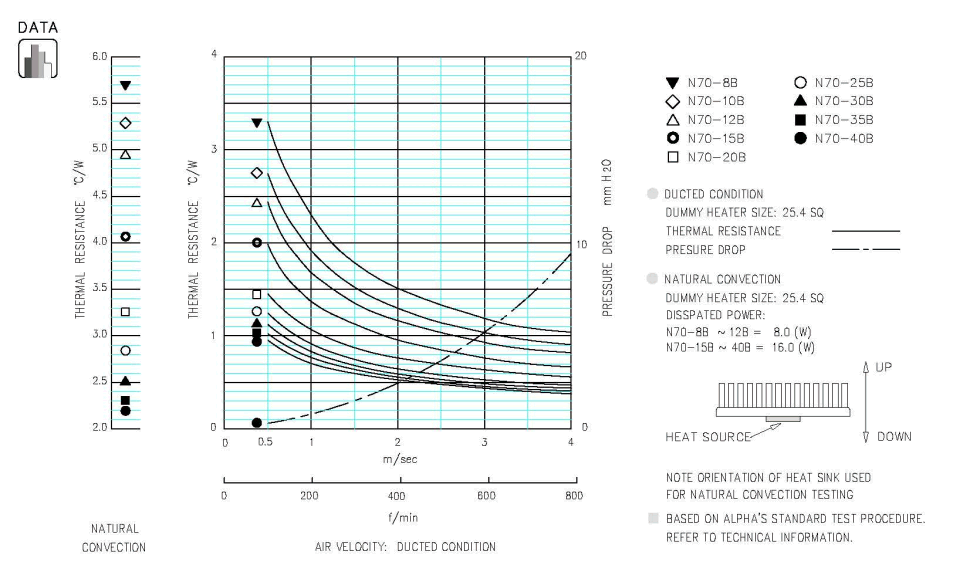

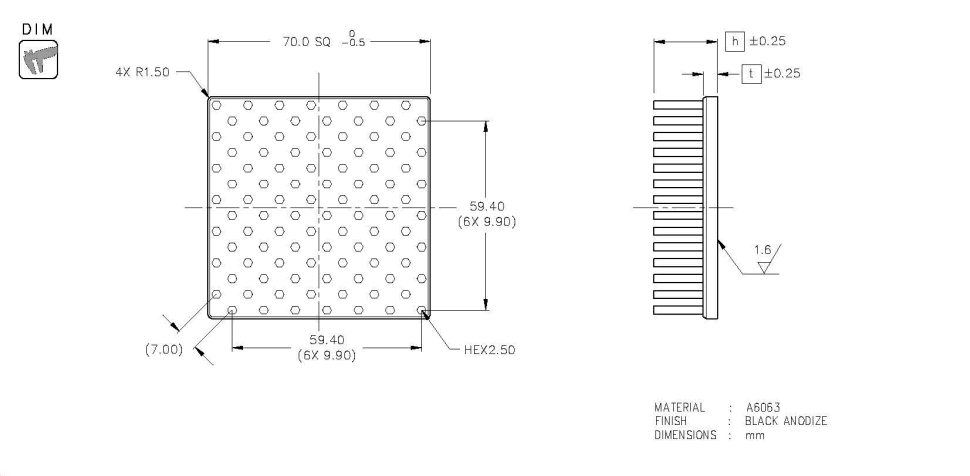

N70 SPECIFICATION & THERMAL DATA
| Model | Height h (mm) |
Base t (mm) |
Weight (g) |
Download | Availability / Price / Order | Option | ||
|---|---|---|---|---|---|---|---|---|
| 8 | 3.0 | 46.5 |
|
STEP | IGES |
|
Additional Engineering Designation
Minimum Order: 1 pcs
Lead-time: 7-10 days ※We will respond to further express services. |
|
| 10 | 49.4 | STEP | IGES | |||||
| 12 | 52.2 | STEP | IGES | |||||
| 15 | 4.5 | 74.0 | STEP | IGES | ||||
| 20 | 81.2 | STEP | IGES | |||||
| 25 | 88.3 | STEP | IGES | |||||
| 30 | 95.5 | STEP | IGES | |||||
| 35 | 102.6 | STEP | IGES | |||||
| 40 | 109.8 | STEP | IGES | |||||
|
