S1555

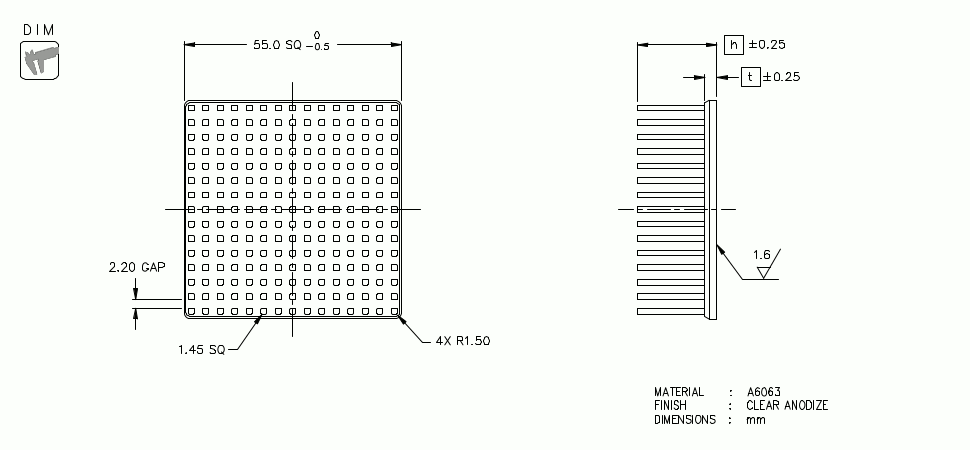

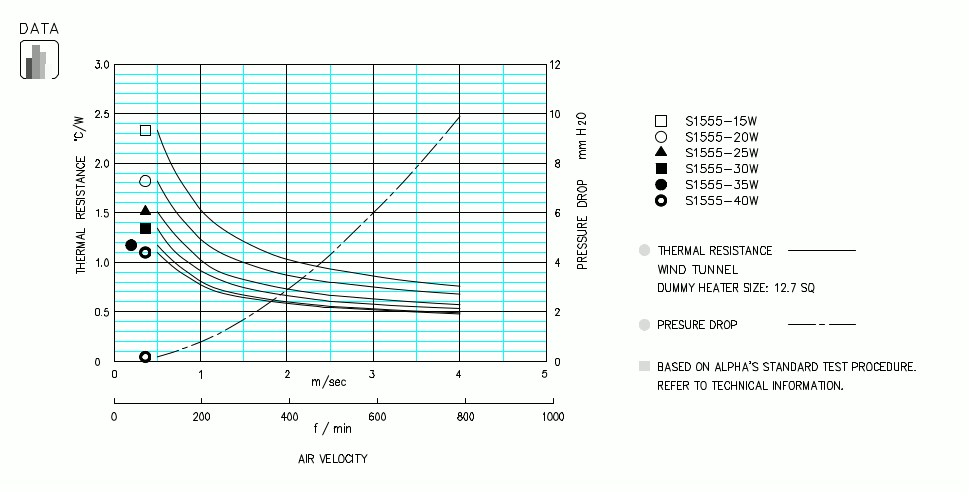

S1555 SPECIFICATION & THERMAL DATA
| Model | Height h (mm) |
Base t (mm) |
Weight (g) |
Download | Availability / Price / Order | Option | ||
|---|---|---|---|---|---|---|---|---|
| 15 | 3.0 | 39.4 |
|
STEP | IGES |
|
Additional Engineering Designation
Minimum Order: 1 pcs
Lead-time: 7-10 days ※We will respond to further express services. |
|
| 20 | 45.7 | STEP | IGES | |||||
| 25 | 3.5 | 55.4 | STEP | IGES | ||||
| 30 | 61.4 | STEP | IGES | |||||
| 35 | 67.7 | STEP | IGES | |||||
| 40 | 73.9 | STEP | IGES | |||||
|
Select Height
{{ITEMNAME}}
|
---
{{baseT_heightchange}}
|
{{weight_heightchange}}
|
||||||
