UB13070

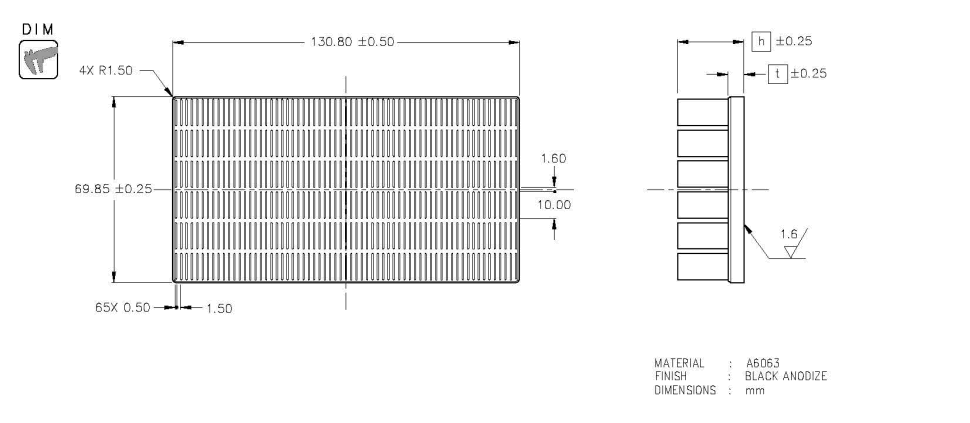

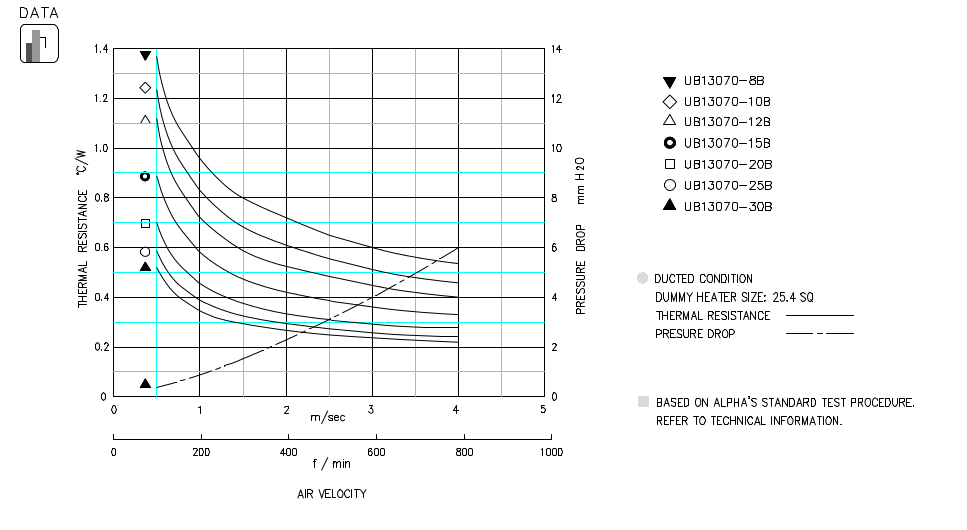

UB13070 SPECIFICATION & THERMAL DATA
Specification
Model Height
h (mm)
Base
t (mm)
Weight
(g)
Download Availability / Price / Order Option
8 4.0 118.8 catalog DXF RoHS REACH STEP IGES
10 129.2 STEP IGES
12 5.0 158.1 STEP IGES
15 6.0 192.8 STEP IGES
20 218.2 STEP IGES
25 243.6 STEP IGES
30 269.0 STEP IGES
Select Height
{{ITEMNAME}}
---
{{baseT_heightchange}}
{{weight_heightchange}}

Specification
