Online Catalog
UB2035

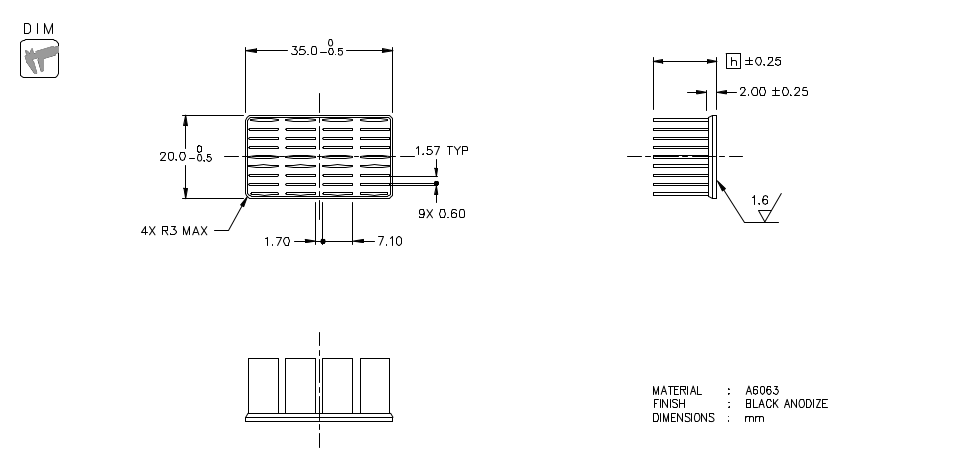

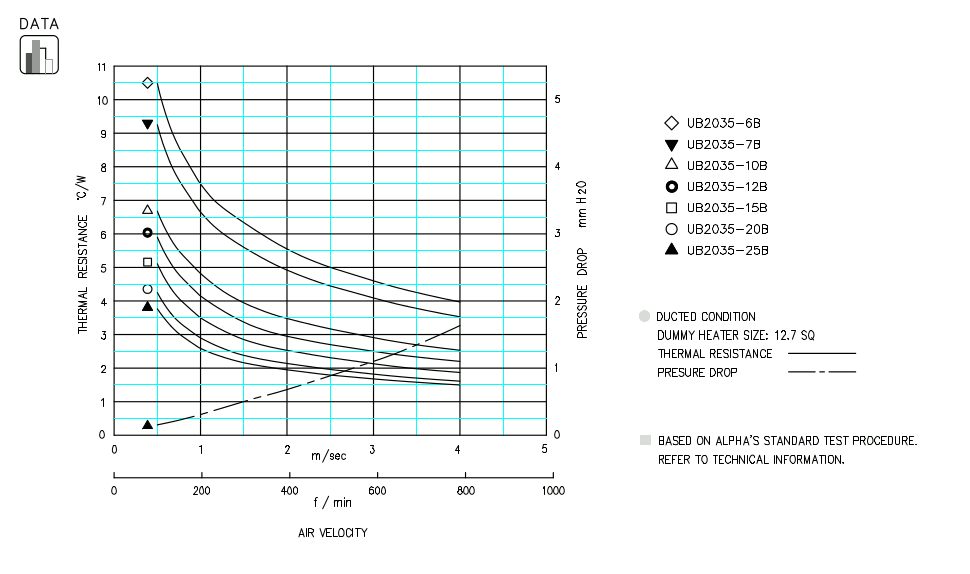

UB2035 SPECIFICATION & THERMAL DATA
| Model | Height h (mm) |
Weight (g) |
Download | Availability / Price / Order | Option | ||
|---|---|---|---|---|---|---|---|
| 6 | 5.0 |
|
STEP | IGES |
|
Additional Engineering Designation
Minimum Order: 1 pcs
Lead-time: 7-10 days ※We will respond to further express services. |
|
| 7 | 5.3 | STEP | IGES | ||||
| 10 | 6.4 | STEP | IGES | ||||
| 12 | 7.1 | STEP | IGES | ||||
| 15 | 8.1 | STEP | IGES | ||||
| 20 | 9.8 | STEP | IGES | ||||
| 25 | 11.5 | STEP | IGES | ||||
|
Select Height
