UB2040

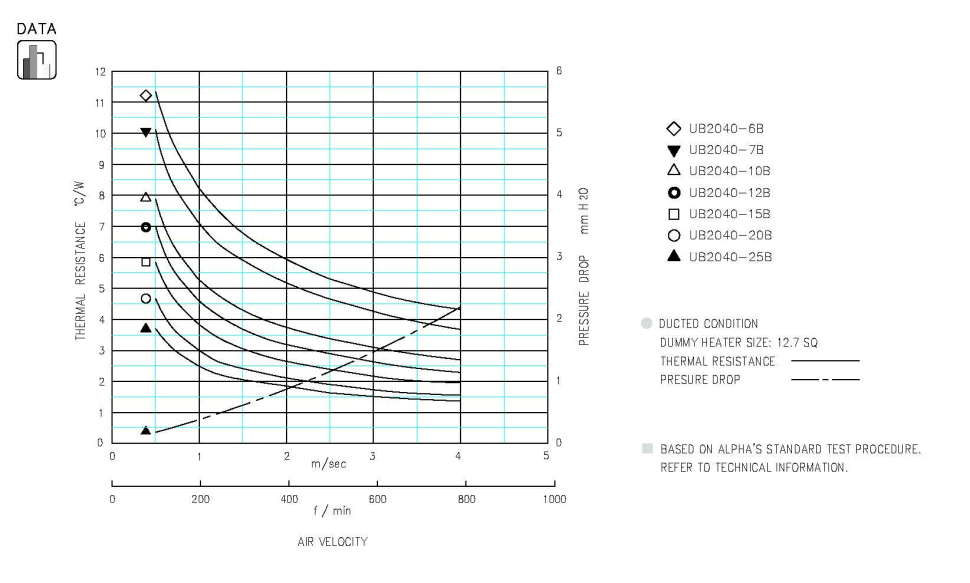

UB2040 SPECIFICATION & THERMAL DATA

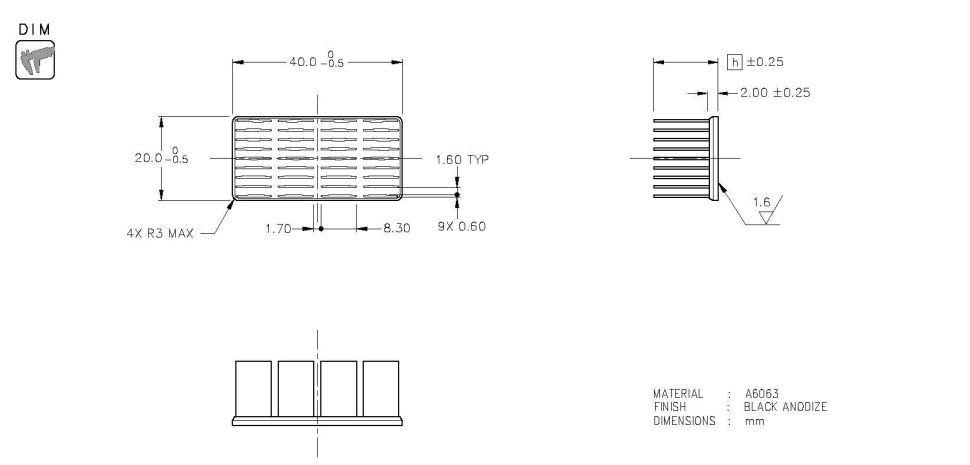

Specification
Model Height
h (mm)
Base
(mm)
Weight
(g)
Download Availability / Price / Order Option
6 5.9 catalog DXF RoHS REACH STEP IGES
7 6.3 STEP IGES
10 7.5 STEP IGES
12 8.3 STEP IGES
15 9.6 STEP IGES
20 11.6 STEP IGES
25 13.7 STEP IGES
Select Height
{{ITEMNAME}}
---
{{baseT_heightchange}}
{{weight_heightchange}}

Specification
