UB32

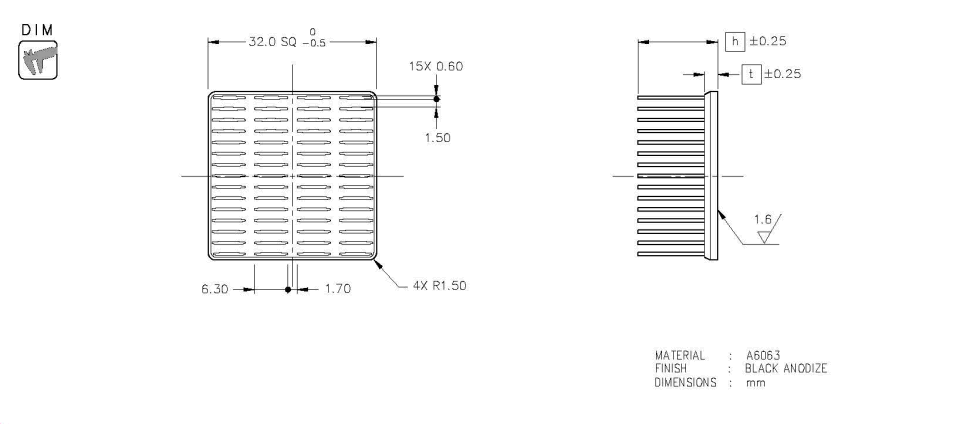

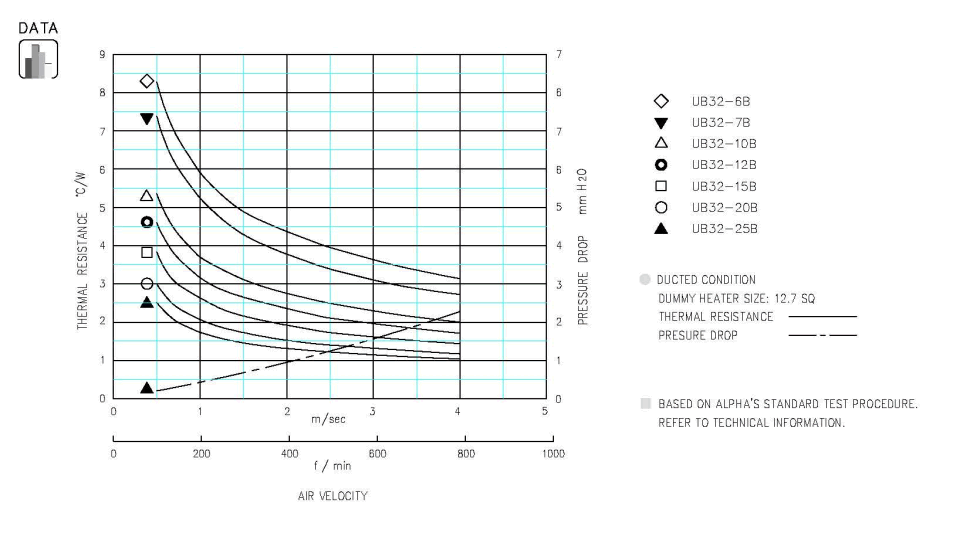

UB32 SPECIFICATION & THERMAL DATA
| Model | Height h (mm) |
Base t (mm) |
Weight (g) |
Download | Availability / Price / Order | Option | ||
|---|---|---|---|---|---|---|---|---|
| 6 | 2.0 | 7.4 |
|
STEP | IGES |
|
Additional Engineering Designation
Minimum Order: 1 pcs
Lead-time: 7-10 days ※We will respond to further express services. |
|
| 7 | 7.9 | STEP | IGES | |||||
| 10 | 2.5 | 10.5 | STEP | IGES | ||||
| 12 | 11.6 | STEP | IGES | |||||
| 15 | 13.1 | STEP | IGES | |||||
| 20 | 15.7 | STEP | IGES | |||||
| 25 | 18.2 | STEP | IGES | |||||
|
