UB54

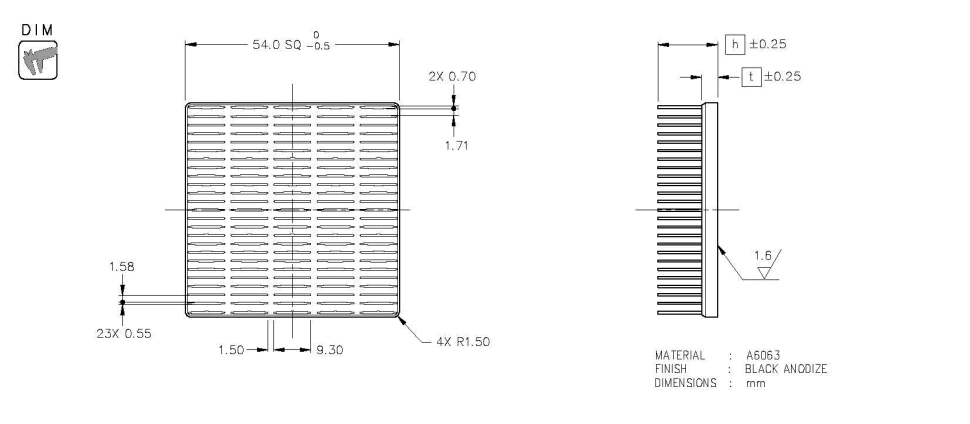

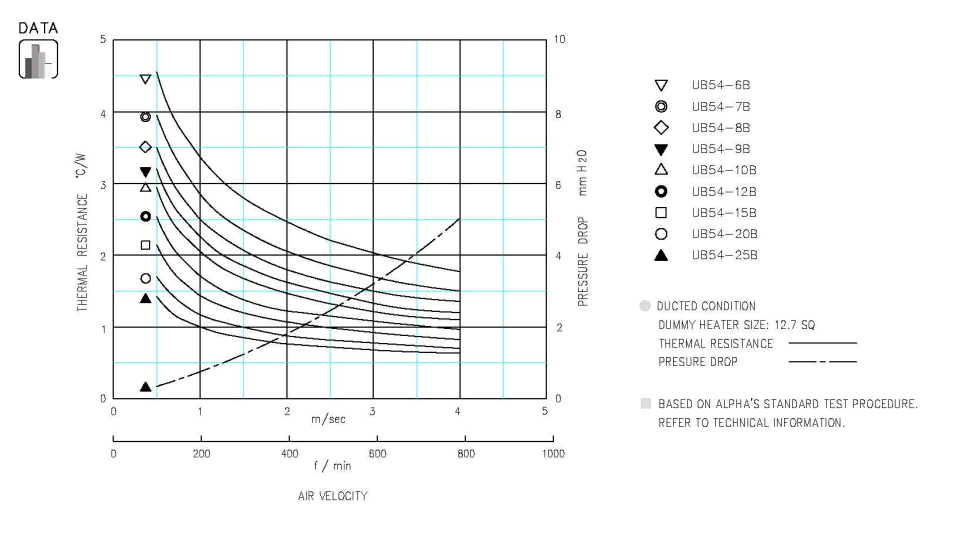

UB54 SPECIFICATION & THERMAL DATA
| Model | Height h (mm) |
Base t (mm) |
Weight (g) |
Download | Availability / Price / Order | Option | ||
|---|---|---|---|---|---|---|---|---|
| 6 | 3.0 | 28.1 |
|
STEP | IGES |
|
Additional Engineering Designation
Minimum Order: 1 pcs
Lead-time: 7-10 days ※We will respond to further express services. |
|
| 7 | 29.6 | STEP | IGES | |||||
| 8 | 31.0 | STEP | IGES | |||||
| 9 | 32.4 | STEP | IGES | |||||
| 10 | 4.0 | 39.3 | STEP | IGES | ||||
| 12 | 42.6 | STEP | IGES | |||||
| 15 | 47.5 | STEP | IGES | |||||
| 20 | 55.8 | STEP | IGES | |||||
| 25 | 64.0 | STEP | IGES | |||||
|
