UB60

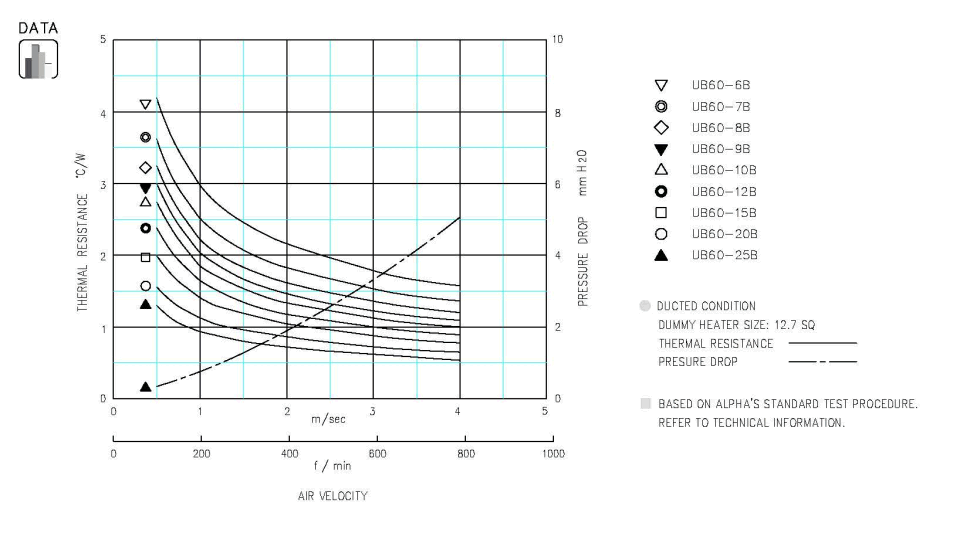

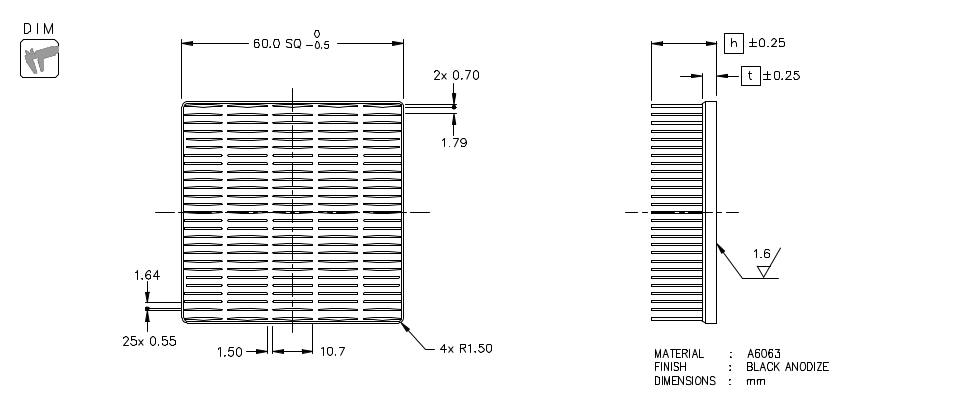

UB60 SPECIFICATION & THERMAL DATA
| Model | Height h (mm) |
Base t (mm) |
Weight (g) |
Download | Availability / Price / Order | Option | ||
|---|---|---|---|---|---|---|---|---|
| 6 | 3.0 | 35.5 |
|
STEP | IGES |
|
Additional Engineering Designation
Minimum Order: 1 pcs
Lead-time: 7-10 days ※We will respond to further express services. |
|
| 7 | 37.3 | STEP | IGES | |||||
| 8 | 39.2 | STEP | IGES | |||||
| 9 | 41.0 | STEP | IGES | |||||
| 10 | 4.0 | 49.5 | STEP | IGES | ||||
| 12 | 52.9 | STEP | IGES | |||||
| 15 | 58.0 | STEP | IGES | |||||
| 20 | 66.5 | STEP | IGES | |||||
| 25 | 75.0 | STEP | IGES | |||||
|
