UB9080

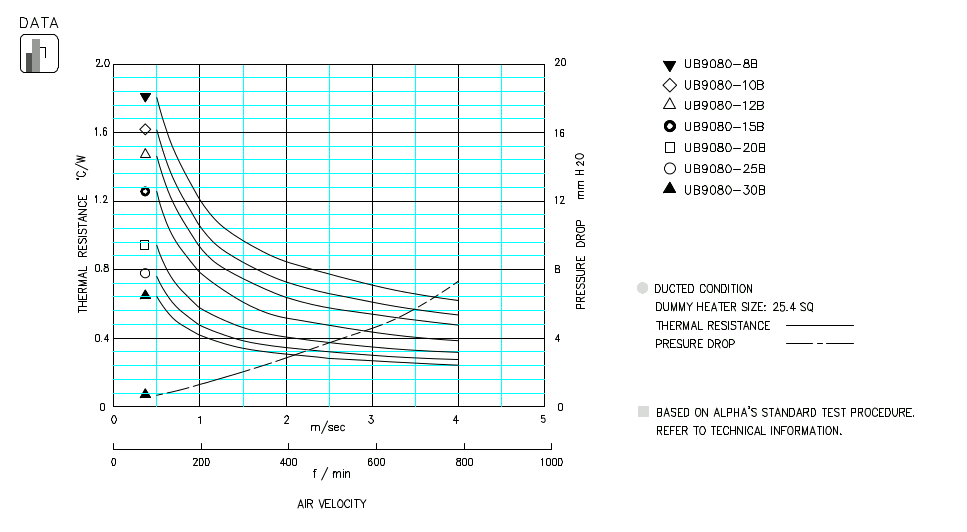

UB9080 SPECIFICATION & THERMAL DATA

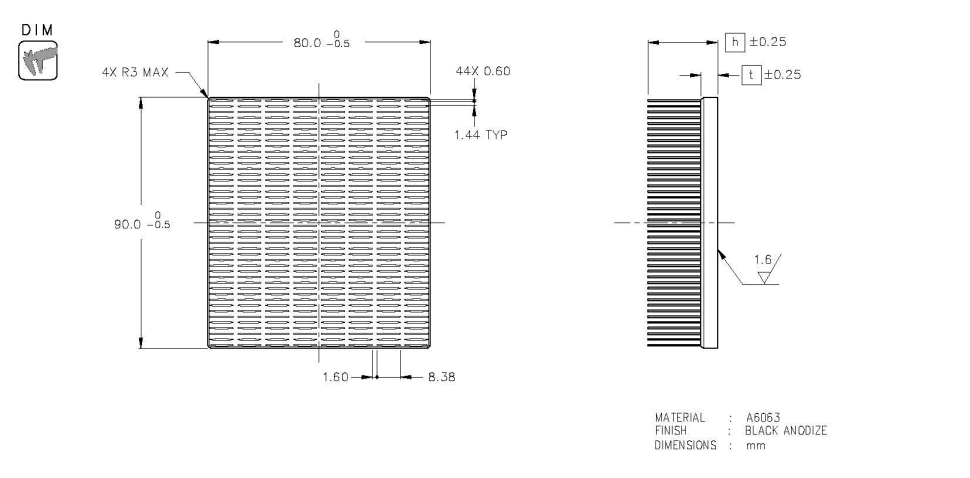

Specification
Model Height
h (mm)
Base
t (mm)
Weight
(g)
Download Availability / Price / Order Option
8 4.0 93.5 catalog DXF RoHS REACH STEP IGES
10 101.6 STEP IGES
12 109.7 STEP IGES
15 6.0 152.4 STEP IGES
20 172.7 STEP IGES
25 193.0 STEP IGES
30 213.3 STEP IGES
Select Height
{{ITEMNAME}}
---
{{baseT_heightchange}}
{{weight_heightchange}}

Specification
