Z19

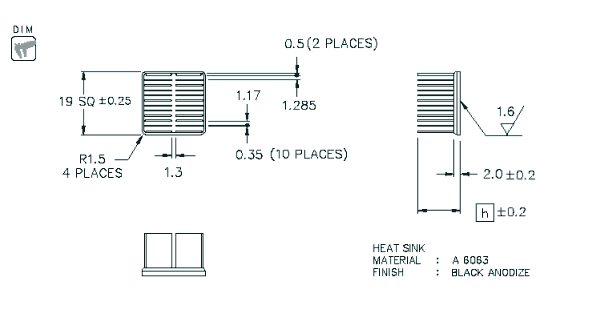

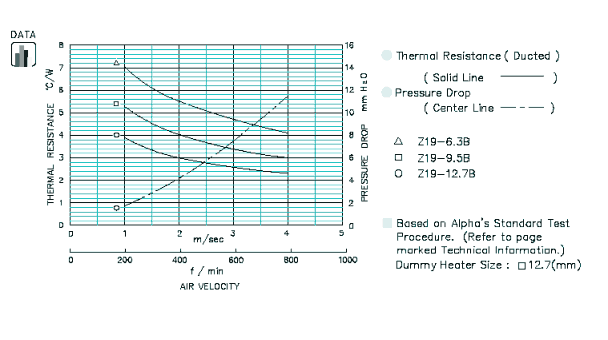

Z19 SPECIFICATION & THERMAL DATA
Specification
Model Height
h (mm)		 Base
(mm)		 Weight
(g)		 Download Availability / Price / Order Option
6.3 2.6 catalog DXF RoHS REACH STEP IGES
Add
Attachment
Method
Additional Engineering Designation
Minimum Order: 1 pcs
Lead-time: 7-10 days
※We will respond to further express services.
9.5 3.2 STEP IGES
12.7 3.8 STEP IGES
Select Height
{{ITEMNAME}}
---
{{baseT_heightchange}}
{{weight_heightchange}}
