LT100

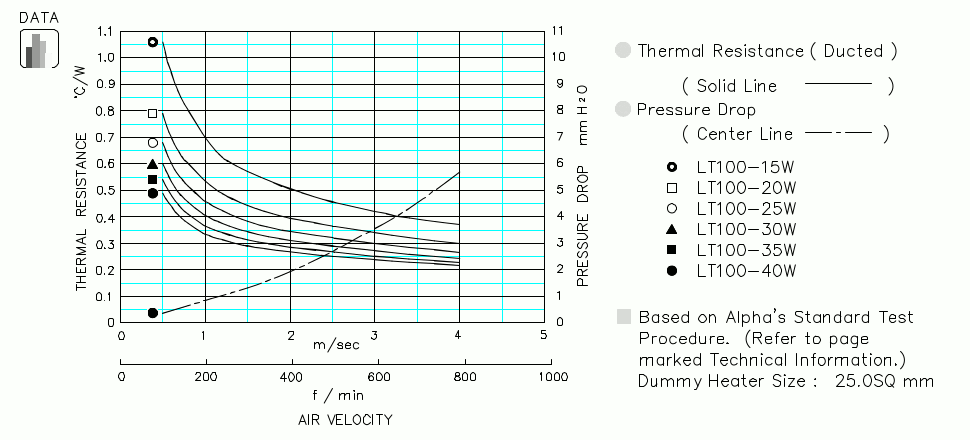

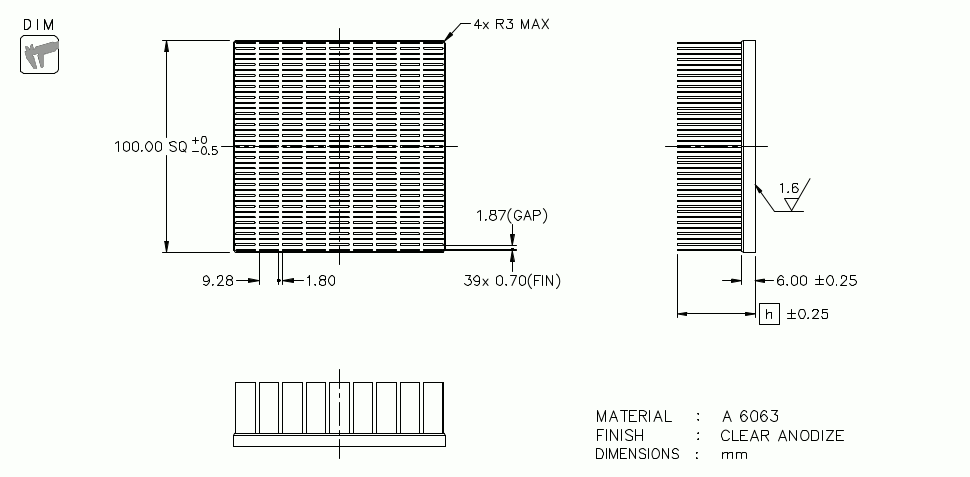

LT100 SPECIFICATION & THERMAL DATA
| Model | Height h (mm) |
Weight (g) |
Download | Availability / Price / Order | Option | ||
|---|---|---|---|---|---|---|---|
| 15 | 215.2 |
|
STEP | IGES |
|
Additional Engineering Designation
Minimum Order: 1 pcs
Lead-time: 7-10 days ※We will respond to further express services. |
|
| 20 | 245.5 | STEP | IGES | ||||
| 25 | 275.7 | STEP | IGES | ||||
| 30 | 306.0 | STEP | IGES | ||||
| 35 | 336.3 | STEP | IGES | ||||
| 40 | 366.6 | STEP | IGES | ||||
|
Select Height
