LT8090

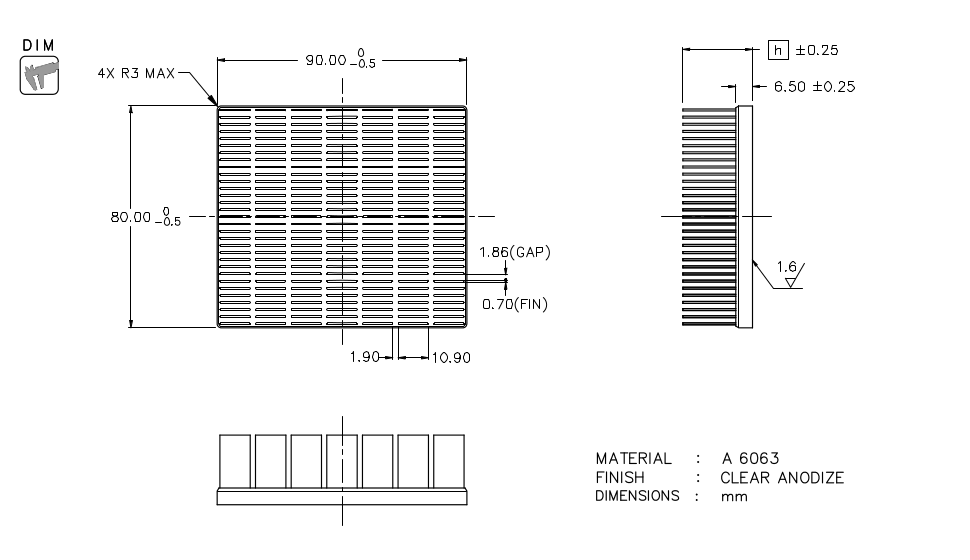

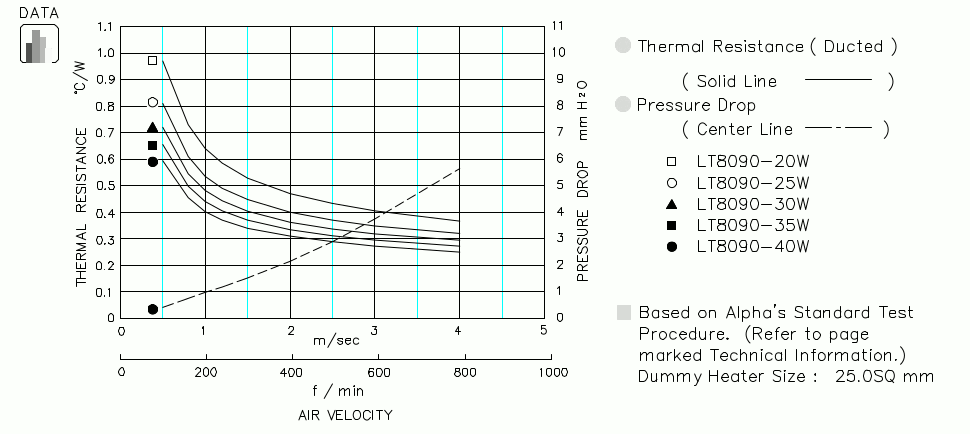

LT8090 SPECIFICATION & THERMAL DATA
| Model | Height h (mm) |
Weight (g) |
Download | Availability / Price / Order | Option | ||
|---|---|---|---|---|---|---|---|
| 20 | 150.1 |
|
STEP | IGES |
|
Additional Engineering Designation
Minimum Order:1 piece
Lead-time:1-2 weeks ※We will respond to further express services. |
|
| 25 | 162.4 | STEP | IGES | ||||
| 30 | 174.6 | STEP | IGES | ||||
| 35 | 186.9 | STEP | IGES | ||||
| 40 | 199.1 | STEP | IGES | ||||
|
Select Height
{{ITEMNAME}}
|
{{weight_heightchange}}
|
||||||
