ULP100

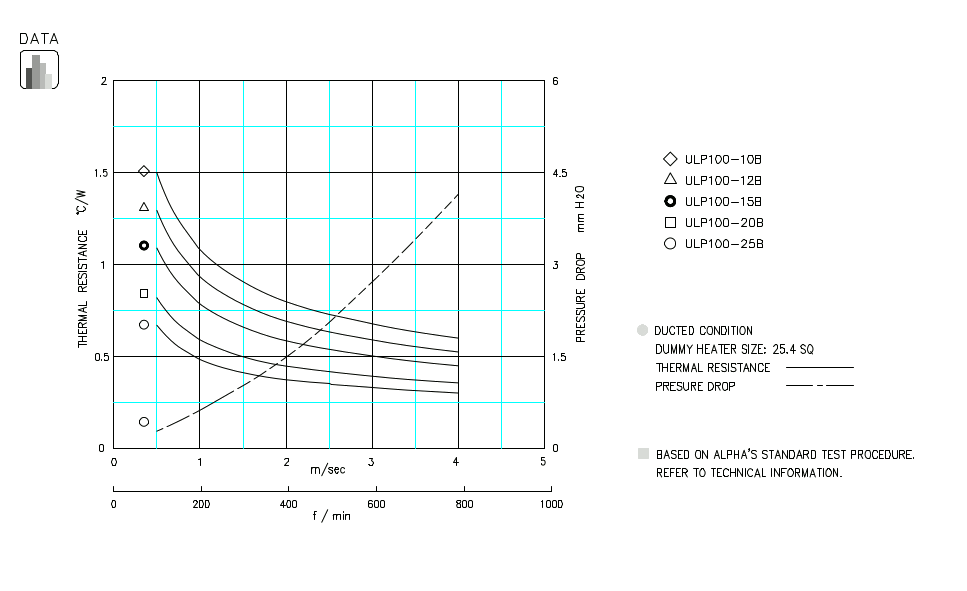

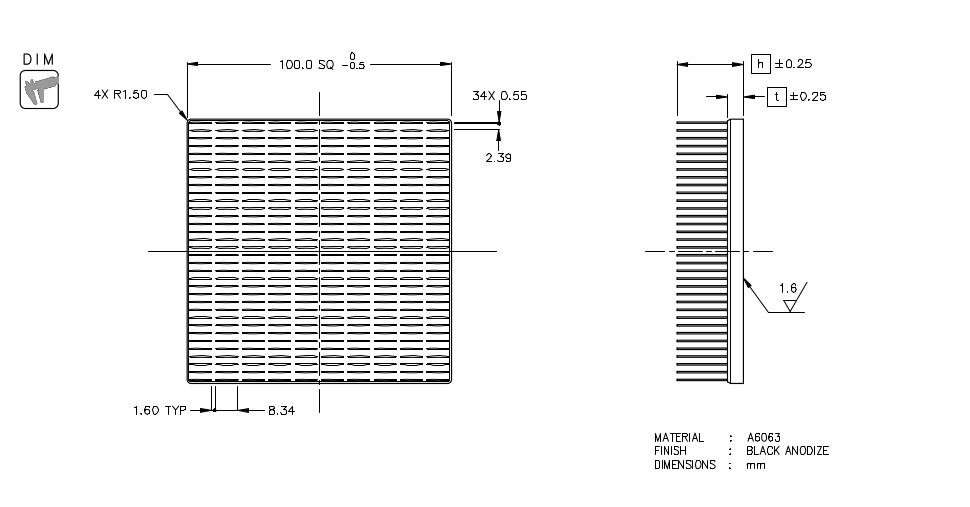

ULP100 SPECIFICATION & THERMAL DATA
| Model | Height h (mm) |
Base t (mm) |
Weight (g) |
Download | Availability / Price / Order | Option | ||
|---|---|---|---|---|---|---|---|---|
| 10 | 4.5 | 140.9 |
|
STEP | IGES |
|
Additional Engineering Designation
Minimum Order: 1 pcs
Lead-time: 7-10 days ※We will respond to further express services. |
|
| 12 | 148.2 | STEP | IGES | |||||
| 15 | 6.0 | 194.0 | STEP | IGES | ||||
| 20 | 212.3 | STEP | IGES | |||||
| 25 | 230.6 | STEP | IGES | |||||
|
