W90

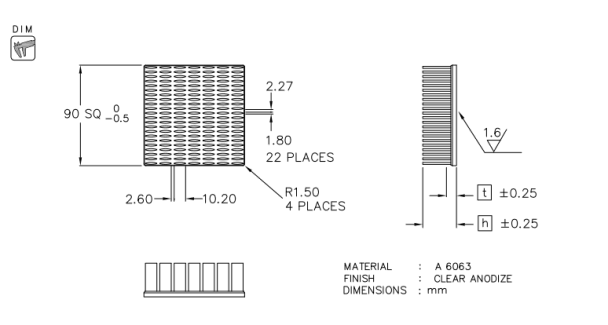

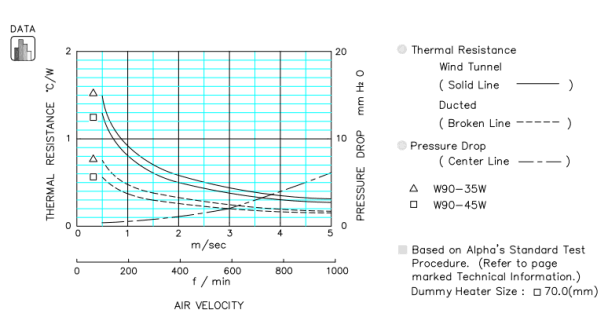

W90 SPECIFICATION & THERMAL DATA
| Model | Height h (mm) |
Base t (mm) |
Weight (g) |
Download | Availability / Price / Order | Option | ||
|---|---|---|---|---|---|---|---|---|
| 20 | 6.0 | 199 |
|
STEP | IGES |
|
Additional Engineering Designation
Minimum Order: 1 pcs
Lead-time: 7-10 days ※We will respond to further express services. |
|
| 25 | 227 | STEP | IGES | |||||
| 30 | 255 | STEP | IGES | |||||
| 35 | 7.0 | 311 | STEP | IGES | ||||
| 40 | 339 | STEP | IGES | |||||
| 45 | 367 | STEP | IGES | |||||
