Alpha has expanded its wide range of off-the-shelf products to meet with our customer's requirements.

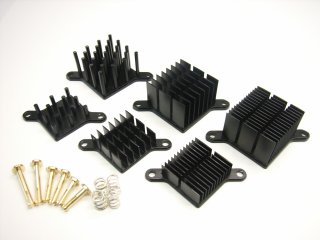

We have added 40 and 45mm square heatsinks with integrated push pin tabs.
We have also added new heatsinks with the integrated tabs in pre-existing
sizes. These heat sinks feature a 90 degree rotated airflow direction to
complement the existing offerings.
These additional sizes/orientations will provide our customers with greater freedom/flexibility when it comes to PCB layout.
Please visit our online catalog Heatsink with attachment tabs for more details.
Model name | Base size (mm) | ** : Height (mm) |
---|---|---|
LPDR40 - **B | 40 x 40 | 10, 15, 20 |
LPDR45 - **B | 45 x 45 | |
LPDL25 - **B | 25 x 25 | |
LPDL30 - **B | 30 x 30 | |
LPDL35 - **B | 35 x 35 | |
LPDL40 - **B | 40 x 40 | |
LPDL45 - **B | 45 x 45 | |
UBR40 - **B | 40 x 40 | |
UBR45 - **B | 45 x 45 | |
UBL25 - **B | 25 x 25 | |
UBL30 - **B | 30 x 30 | |
UBL35 - **B | 35 x 35 | |
UBL40 - **B | 40 x 40 | |
UBL45 - **B | 45 x 45 | |
NR40 - **B | 40 x 40 | |
NR45 - **B | 45 x 45 |
